< Attendance / Access Control Equipments >

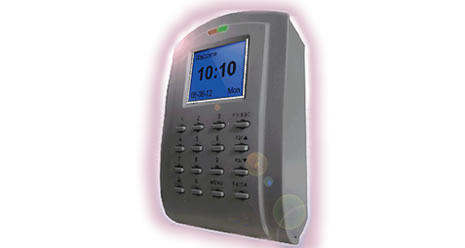

Card Acess

Features :

• Use card for time attendance communication
• Standalone system can do automatically. No need connect to computer all time.
• Built – in Intel 32 bit CPU and built in Linux Operating System.
• Can store up to 10,000 cards. computer all time.
• Identification time less than 1 second.
• Large illuminated LCD can be seen in the dark
• Show Red or Green Light for record status.
• Support menu in English.
• Can communicate with RS232, TCP/IP
• Sleep mode for save energy.
• Can use with all proximity card
• Easy used software.
• Beautiful design and made from good quality material.
• Manager system for control 3 level of operation on machine.

Card Access is widely used access control in the office, choosing a lot of stable original parts, strictly follow the national security product standard it is suitable for the entrances and exits of office, factory, hotel, school, etc. All input/output are using anti-jamming protection.

View Specification

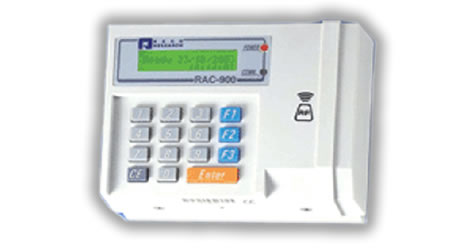

RTA-800/900 Reader

Features :

• Stand alone or on-line with PC. It is capable to connect up to 255 sets .
• Large LCD to show current time, badge number, date shift, duty status and English name.
• Changeable 6 shifts operation mode and 16-shift selection.
• 20 sets timing for siren, which could be activated according to timetable status. U External parallel printer for on time management.
• 128k storage buffer for 5000 transaction records.
• Programmable maximum swipe card failure.
• System will warm when memory buffer is 80% full. It will stop accepting data when 90% full.
• Capable to set whether to record invalid transaction and check duplication of swiping card in order to save memory capacity.
• Provides self-test code to detect during system failure.
• Master card for stand alone operation.
• Provide Wiegand 26 bit input interface.
• Provide 1 DC 12V output for musical bell.
• Provide 1 relay output as an access controller.
• Built-in UPS to operate during power failure.

PC-based Access Control Terminal; RS-232 & 485 communication interfaces; Mag. Stripe, Barcode or Proximity

View Specification

Stand-alone Access Control Terminal

Features :

• Stand-alone design for small business.
• 400 Card holders(can upgrade to 3,000).
• 2 Relays for Door Lock & Alarm.
• 2 Sensors for Push Button & Door Sensor.
• Adjustable Door Sensor Mode (NO/NC).
• 3 Door Open Mode: Card; PIN; Card+PIN.
• Built-in 125KHz Reader(Mifare, Temic for option).
• 3X 4 back-lit Keypad.
• Door Bell function.
• System halts for 25 Sec. after 5 attempts by invalid card.
• With Access Control On/Off function.
• Tri-color (Red/Green/Orange) LED X 1; Buzzer X 1.
• Can set Door Sensor NO/NC mode.
• Can set valid Card Reading Digits.
• Stand-alone design; can work without PC.
• Delicate, Compact design easy installment.

Non-PC-based Access Control Terminal; No communication interfaces; Mag. Stripe, Barcode or Proximity

View Specification
